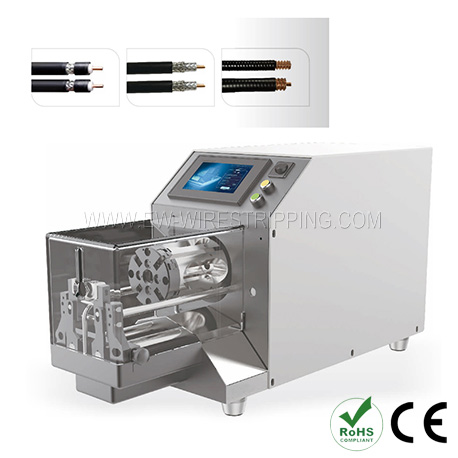

Coaxial Cable Stripping Machine(1.5-15mm)
Strip,Twist
Technical Data
|
Model |
EW-1170 |
|
Max. stripping length |
0.1-85mm |
|
Wire diameter |
1.5-15 mm |
|
Capacity |
400 - 600 pcs./h |
|
Length accuracy |
± (0.002 * L) mm |
|
Max. stripping layer |
9 layers |
|
Dispaly |
Touch screen |
|
Dimension |
640*260*330mm |
|
Weight |
34Kgs |
Feature
1. Cables with thinner and slightly unrounded coatings can be stripped;
2. Use advanced four-blade rotary cutting technology to improve processing accuracy and capabilities:
3. 200 sets of processing data are stored and can be quickly retrieved by entering the storage code;
4. Automatic centering technology, no need to recalibrate when changing tools, simple operation.
Application Range
More Info
Model：Coaxial Cable Stripping Machine(1.5-15mm)
Model EW-1170
Max. stripping length 0.1-85mm
Wire diameter 1.5-15 mm
Capacity 400 - 600 pcs./h
Max. stripping length 0.1-85mm
Wire diameter 1.5-15 mm
Capacity 400 - 600 pcs./h
