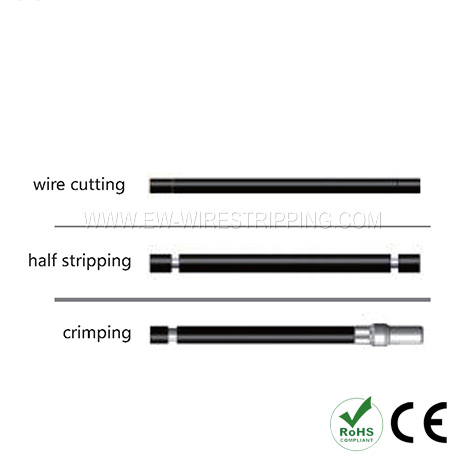

Model：Automatic PV wire linked terminal crimping machine(single end)（4-6mm²）（2.5T）

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8250
Wire  size:4-6mm²
Stripping  length:0.1-18mm
Cutting  length:80-10000mm
Cutting  tolerance:±（1.0mm+0.2%*L）(L=cutting  length)
Productivity:1000-1200pcs/h
Feeding  speed:12m/s(max)
Crimping  force:25KN
Air  supply:0.5-0.8MPa
ENQUIRE NOW!
Video Specifications

  • ● Full closed loop flexible wire feeding system,rubber belt feeding device to protect the wire surface from damaging, increasing the wire feeding accuracy.

    ● It uses network drive system to meet the industrial processing requirement of the PV wire

    ● Import servo motor drive,to ensure high precision, high efficiency and high stability

    ● Industrial computer operating system,operation easy and simple.

    ● Pressure monitoring system can be installed, whole-process pressure monitoring,100% traceability.

  • Model

    EW-8250

    Wire Size

    4-6mm²

    Stripping Length

    0.1-18mm

    Cutting Length

    80-10000mm

    Cutting Tolerance

    ±（1.0mm+0.2%*L）(L=cutting length)

    Productivity

    1000-1200pcs/h

    Feeding Speed

    12m/s(max)

    Wire Collection

    2m

    Crimping Force

    25KN

    Air supply

    0.5-0.8MPa

    Air Consumption

    6.5-8m³/h

    Power supply

    AC220V,50Hz

    Rate Power

    3.5kw

    Dimension

    L3500 x W1200 x H1700mm(with 2m wire collection)
