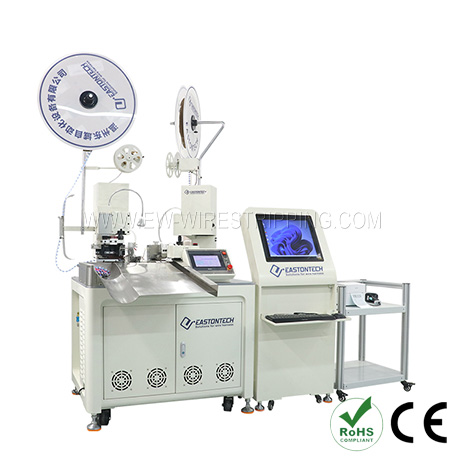

EW-22D+S Ferrules Crimping Machine with Intelligent Control System
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-22D+S |
|
Applicable wire range |
AWG28-AWG14 |
|
Stripping/Twisting length |
7-12mm |
|
Cut precision |
±(0.5+0.002*L) mm, L=cut length |
|
Cutting length |
50-9999mm |
|
Capacity |
1400pcs/hour(Length less than 300mm) |
|
Crimping force |
2.0T |
|
Applicators |
30mm or 40mm strokes for optional |
|
Air pressure |
0.6-0.8Mpa |
|
Detection |
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
|
Power |
220V/110V/50/60HZ |
|
Display language |
Chinese/English |
|
Dimension |
700*800*1500mm |
|
Weight |
358Kg |
|
Power cord plug |
European, USA, Chinese plug |
Feature
This is a fully automatic 2-ends wire cutting stripping and crimping machine for Plastic Shell Terminals.
1.Provide general and customized versions of Excel to realize batch and fast import of tasks.
2.Scan the material information to determine whether the material matches the current processing task.
3.To facilitate process management, process work orders are automatically printed during processing. The print template is optional and can be customized.
4.Production tasks can be traced back, providing daily, monthly, and annual reports.
Application Range
More Info
Model：EW-22D+S Ferrules Crimping Machine with Intelligent Control System
Model:EW-22D+S
Applicable wire range:AWG28-AWG14
Stripping/Twisting length:7-12mm
Cutting length:50-9999mm
Capacity:1400pcs/hour(Length less than 300mm)
Crimping force:2.0T
Air pressure:0.6-0.8Mpa
Applicable wire range:AWG28-AWG14
Stripping/Twisting length:7-12mm
Cutting length:50-9999mm
Capacity:1400pcs/hour(Length less than 300mm)
Crimping force:2.0T
Air pressure:0.6-0.8Mpa
