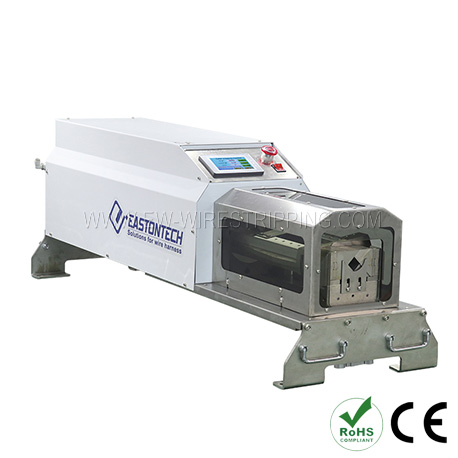

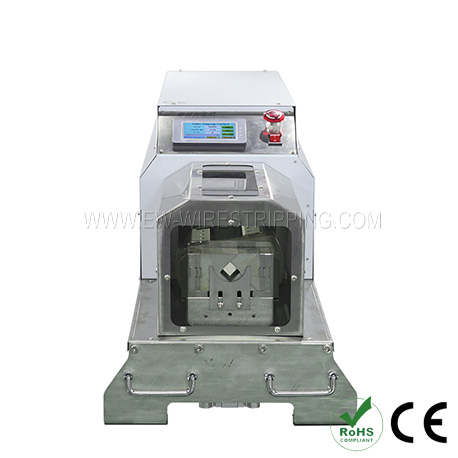

EW-10UT-3 Automatic Wire Stripping Machine(OD:10-50mm)
Strip,Twist
Technical Data
|
Model |
EW-10UT-3 |
|
Wire diameter |
10-50mm |
|
Stripping lengths |
0-300mm |
|
Stripping mode |
Rotary stripping |
|
Air pressure |
0.5-0.7mpa |
|
Length accuracy |
±(0.002*L)mm |
|
Productivity |
20-40pcs/min |
|
Noise level |
<70dba |
|
Electrical connection |
AC 220/110V/50/60HZ |
|
Operation interface |
PLC+Touch screen |
|
Machine dimension |
1400*450*350mm |
|
Weight |
100kg |
|
Table operation |
Optional |
Feature
This series of semi-automatic rotary knife stripping machines are designed for extremely difficult processing big size cables.Widely used in single-strand soft wire, multi-strand soft wire, hard wire, sheath wire, flat wire stripping, etc.
1. Large diameter cable is available
2. Strong stripping ability
3. With special axial positioning and double-rotating blade cutter tools,high-precision rotation
4. Good performance and cost-effective
Application Range
More Info
Model：EW-10UT-3 Automatic Wire Stripping Machine(OD:10-50mm)
Model :EW-10UT-3
Wire diameter:10-50mm
Stripping lengths:0-300mm
Stripping mode:Rotary stripping
Air pressure:0.5-0.7mpa
Length accuracy:±(0.002*L)mm
Productivity:20-40pcs/min
Wire diameter:10-50mm
Stripping lengths:0-300mm
Stripping mode:Rotary stripping
Air pressure:0.5-0.7mpa
Length accuracy:±(0.002*L)mm
Productivity:20-40pcs/min
