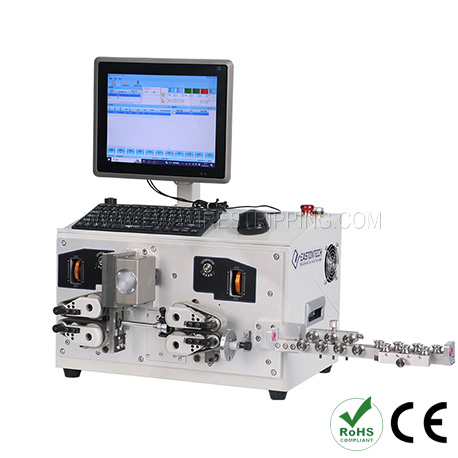

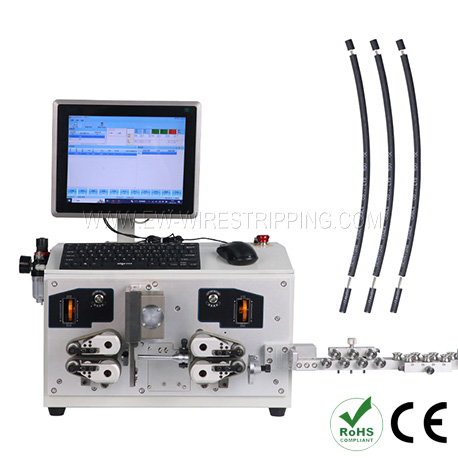

Wire cutting stripping machine with Intelligent software
Cut&Strip
Technical Data
|
Model |
EW-3185+S |
|
Wire material |
PVC, fiberglass wire etc. |
|
Conductor cross-section |
0.2-16sqmm |
|
Cutting length |
55-9999mm |
|
Cutting length tolerance |
± 0.0001 * L |
|
Stripping length |
1-100mm |
|
Air pressure |
0.6-0.8Mpa |
|
Motor |
750W servo motor |
|
Feeding |
Belt feeding |
|
Productivity |
L=100 70pcs/min L=1000 50pcs/min |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Weight |
54 kg |
|
Dimension |
W560*D450*H650mm |
Feature

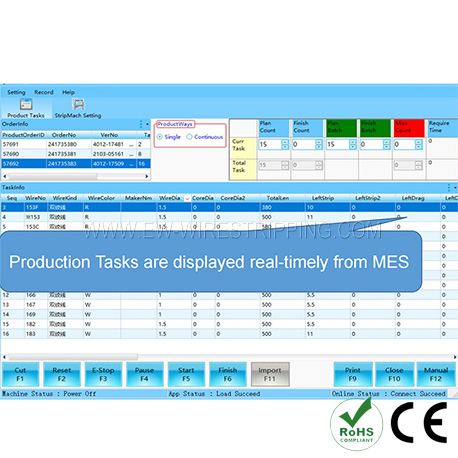

lProvide general and customized versions of Excel to realize batch and fast import of tasks
lScan the material information to determine whether the material matches the current processing task.
lTo facilitate process management, process work orders are automatically printed during processing. The print template is optional and can be customized.
lProduction tasks can be traced back, providing daily, monthly, and annual reports.
Application Range
More Info
Model：Wire cutting stripping machine with Intelligent software
Model:EW-3185+S
Conductor cross-section:0.2-16sqmm
Cutting length:55-9999mm
Cutting length tolerance:± 0.0001 * L
Stripping length:1-100mm
Air pressure:0.6-0.8Mpa
Motor：750W servo motor
Conductor cross-section:0.2-16sqmm
Cutting length:55-9999mm
Cutting length tolerance:± 0.0001 * L
Stripping length:1-100mm
Air pressure:0.6-0.8Mpa
Motor：750W servo motor
