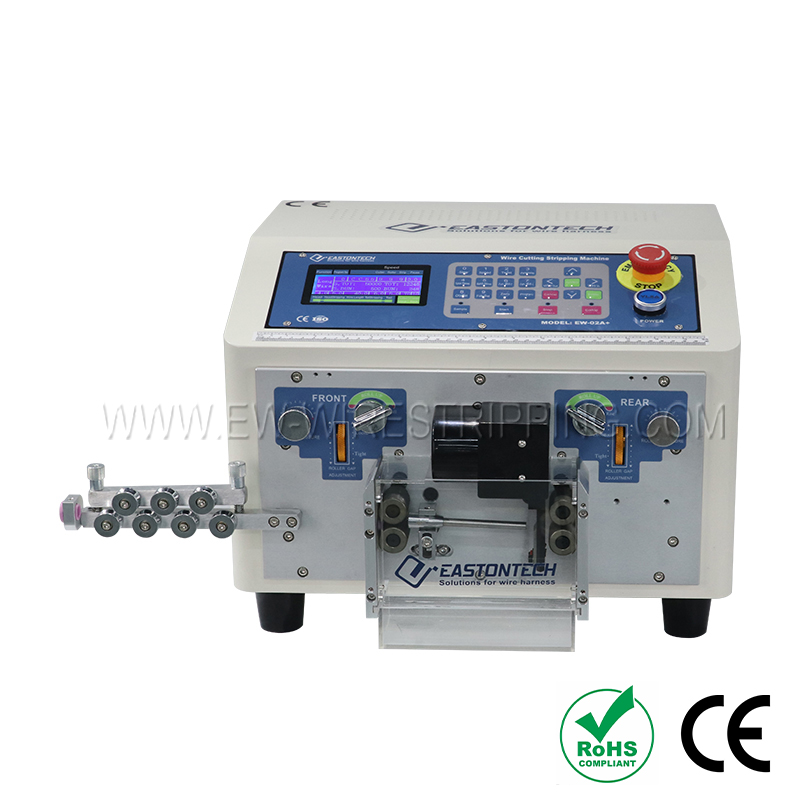

Wire Cutting & Stripping Machine (0.1 - 6 mm2)

Eco-cut&Strip

Technical Data

Model

EW-02A+

Driven mode

Fully Electrical

Wire material

PVC, glass fiber etc.

Wire size

0.1 - 6.0mm²  (28 - 10AWG)

Cutting length

1 - 99999.99 mm

Cutting tolerance

< 0.002 * L

Stripping length

Side I: 0 - 25mm    Side II: 0 - 60mm

Max guide tube diameter

7 mm

Tool box

Optional

Blades material

Stainless Steel

Driving mode

4-roller driving

Display mode

LCD

Productivity

3000 - 5000 pcs./h

Noise level

< 55 dB(A)

Power supply

AC110V/AC220V (50 - 60 Hz)

Power

350 W

Net weight

31 kg

Dimension

465 * 465 * 350 mm

Feature

1.Estop Button and 360°protective cover for safety standards conformity;

2. Fully electrical design, no need for air compressor conneciton.

3.Super low noise motor configuration;

4.Professional user handbook and video QR scan code for master use. Cable wast trash collection box;( Tool box is optional)

5. Simple design of electrical/mechanical separation assembly, easier future maintenance and changeover;

6. Mm/inch comparison length measuring meter label;

7. Door to door delivery service available with ready stock.

Application Range

More Info

Model:Wire Cutting & Stripping Machine (0.1 - 6 mm2)

Scan the QR code

Share to:
1.  Model:  EW-02A+
2.  Wire  material:  PVC,  teflon,  fiberglass  wire...
3.  Conductor  cross-section:  0.1  -  6  mm2
4.  Cutting  length:  1  -  99999.99  mm
5.  Cutting  length  tolerance:  0.002  *  L
6.  Stripping  length  (side  I):  0  -  25  mm
7.  Stripping  length  (side  II):  0  -  60  mm
