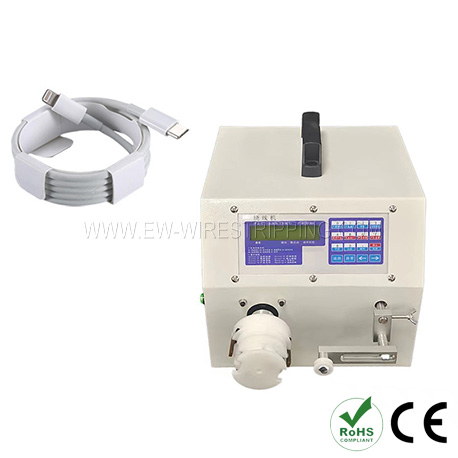

Model：Wire winding machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-2355
Applicable  wire  diameter:1-5mm
Maximum  winding  range:40-100mm
Maximum  disc  diameter:120mm
Number  of  winding  coils:9999  circles
Wiring  travel  width:Adjustable.  Maximum  40mm
ENQUIRE NOW!
Video Specifications

  • 1.Button control, simple operation, clear and concise.

    2.The windings of different lengths can be set according to different requirements, with high speed and efficiency.

    3.Suitable for USB data cables and other wiring harnesses that need to be neatly arranged.

  • Model

    EW-2355

    Applicable wire diameter

    1-5mm

    Maximum winding range

    40-100mm

    Maximum disc diameter

    120mm

    Number of winding coils

    9999 circles

    Wiring travel width

    Adjustable. Maximum 40mm

    Power

    200w

    Dimensions

    360*320*290

    Weight

    18kg
