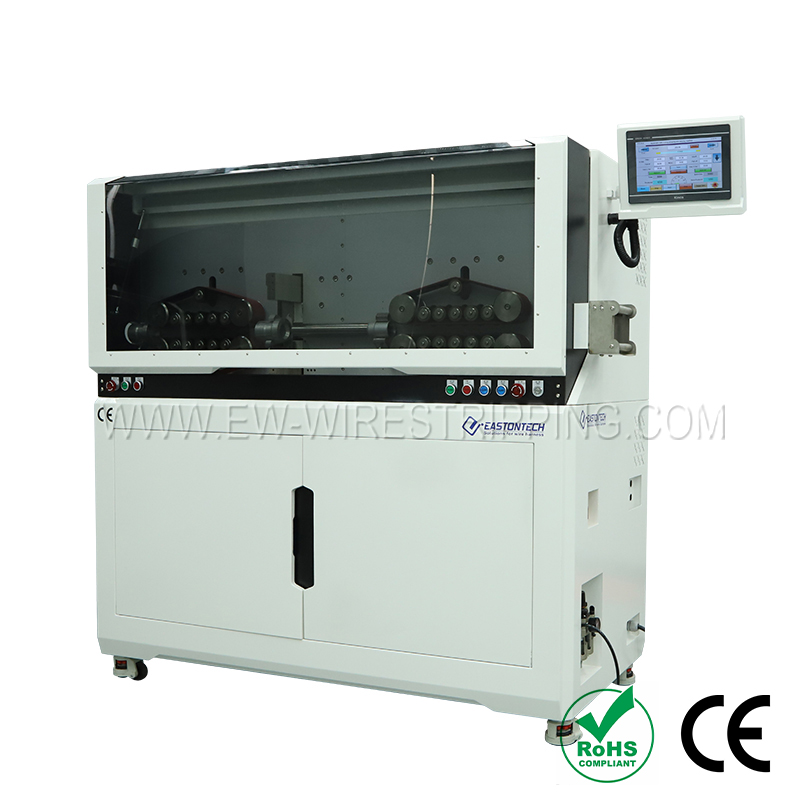

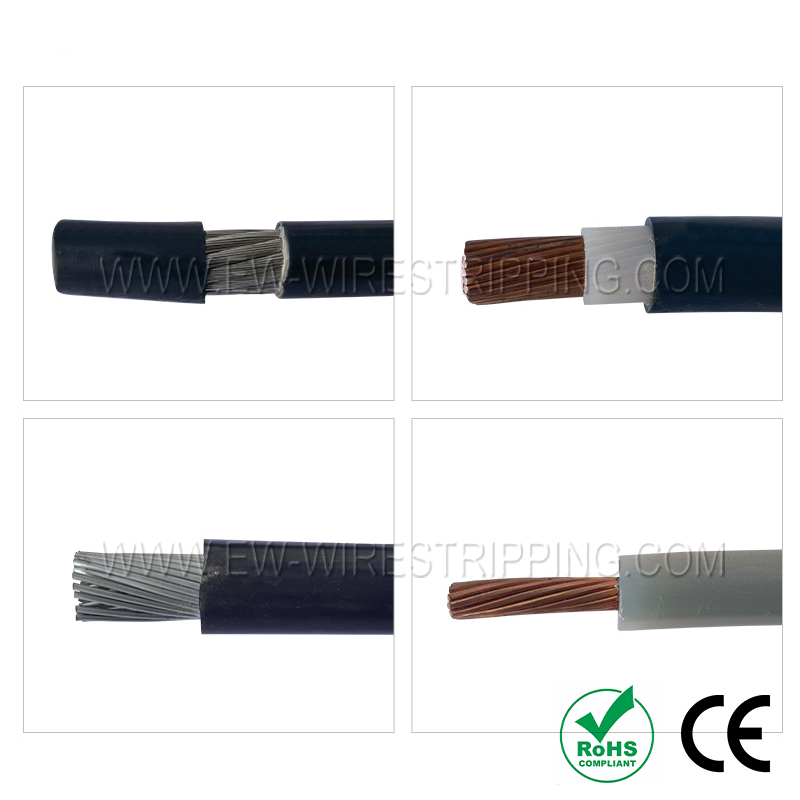

The EW-05S-2 is a versatile cut and strip machine for single core cable up to 400 mm square.
1. Powered by hybrid servo motor, the productivity is maximized to 1000 pcs./h

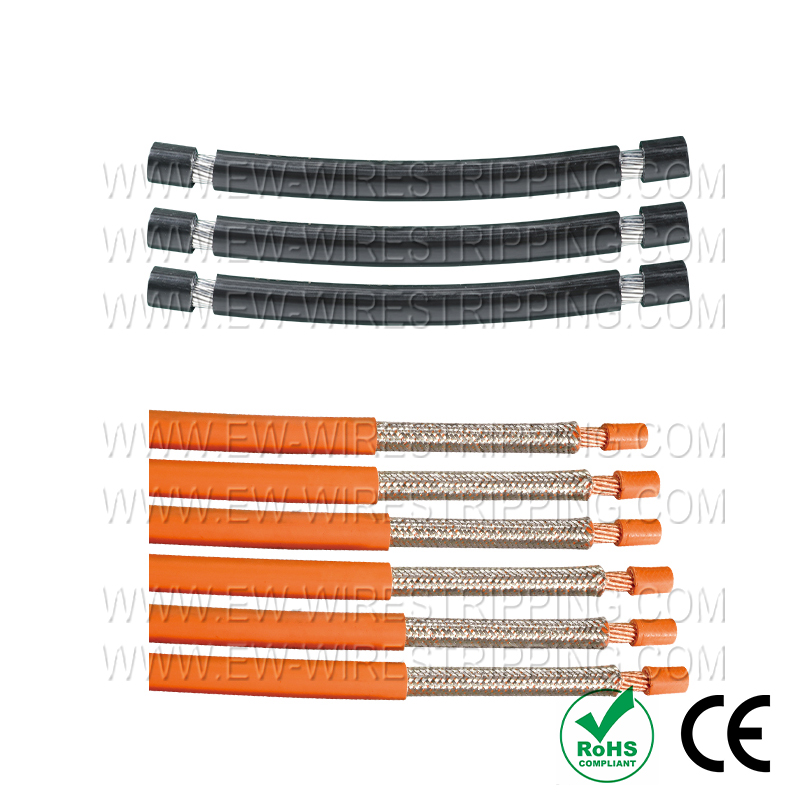

2. Uni-V jacket stripping blades (optional radius blades for special jacket material).
3. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.

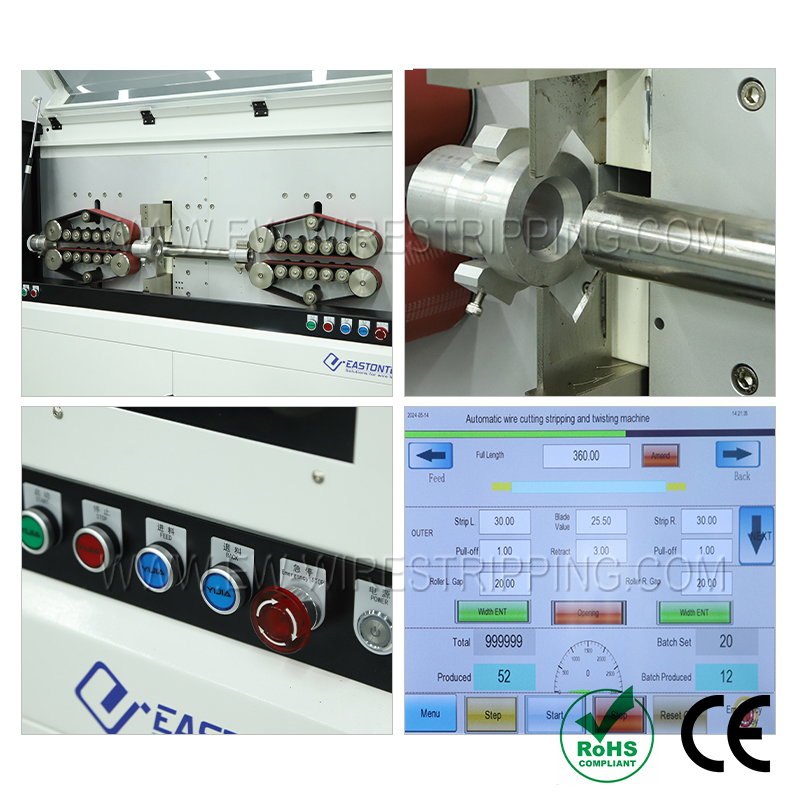

4. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
5. Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
|
Model |
EW-05S-2 |
|
|
|
Conductor cross-section |
10 - 400 mm² |
||
|
Cutting length |
1 - 999,999.9 mm |
||
|
Cutting length tolerance |
< 0.002 * L (L = cutting length) |
||
|
Stripping length (side I) |
Cable jacket - Full strip: 1- 1000 mm - Half strip: 1 - 1500 mm |
||
|
Stripping length (side II) |
Cable jacket - Full strip: 1 - 300 mm - Half strip: 1 - 500 mm |
||
|
Maximum guide tube diameter |
52 mm |
|
|
|
Productivity |
1000 pcs./h |
||
|
Blade material |
Imported high speed steel |
||
|
Display mode |
7-inch touch screen |
||
|
Driving mode |
Servo motor cutting with 32 roller driving system |
||
|
Feeding mode |
Belts feeding with pressure stripping function. |
||
|
Roller Gap |
Digital program control |
||
|
Power supply |
110, 220 V (50 - 60 Hz) |
||
|
Power |
2 kW |
||
|
Compressed air connection |
0.5 - 0.8 MPa |
||
|
Weight |
750 kg |
||
|
Dimension |
1720 * 700 * 1287 mm |
||
|
Remarks |
Custom options by sending samples |
||
