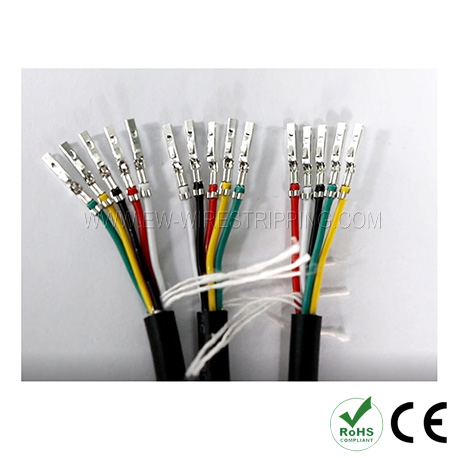

· Mainly used for cutting, peeling and continuous riveting of sheathed wires;

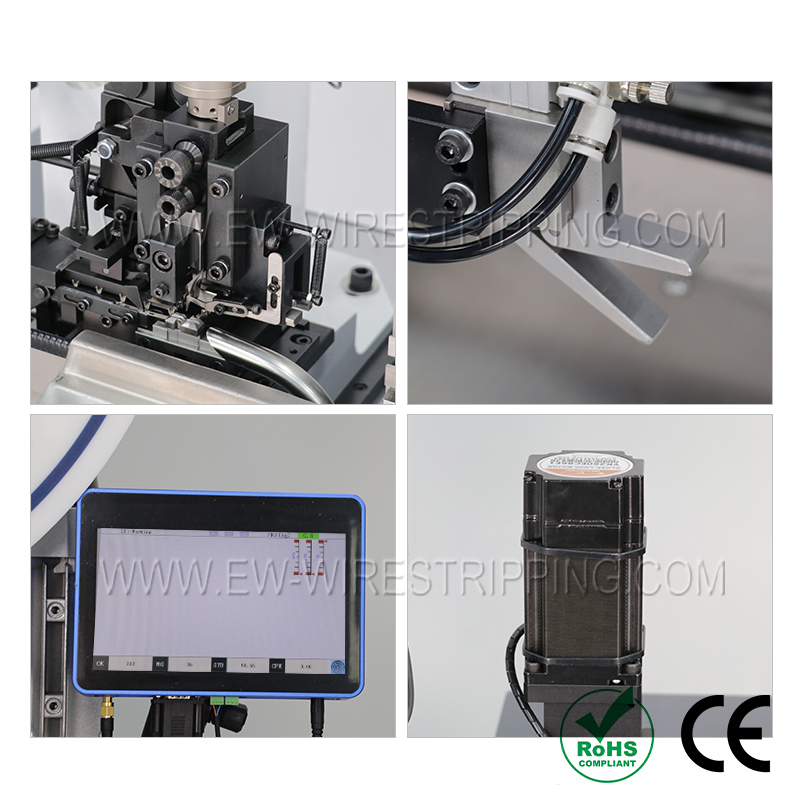

· The peeling and riveting displacements are driven by servo motors and screw drives to improve accuracy and ensure high-quality product requirements;
|
Model |
EW-5380 |
|
Cable type |
AV、AVS、AVSS、CAVUS、KV、KIV、UL、IV etc. |
|
Cable outer diameter |
0.6-2.5mm |
|
Max. Core number |
12 |
|
Outer jacket stripping length |
2 - 4 core : min. 13.5mm 5-15 core : min. 25mm |
|
Inner core stripping length |
0.5-10mm |
|
Stripping length error |
0.05-0.1mm |
|
Crimping force |
2T |
|
Air supply |
0.5-0.7Mpa |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Machine Power |
1500 W |
|
Dimension (L * W * H) |
850*550*1350mm |
|
Net weight |
150kgs |
